  • Description
    Technical Specifications:
    Tubes: KT88-98 × 4 (Output Tubes)
    6N8P × 4 (Drivers and Cathode followers)
    12AX7B × 2 (Voltage amplifiers)
    Maximum Output:
    30W per channel (8Ω and Triode Mode)
    60W per channel (8Ω and Ultra linear Mode)

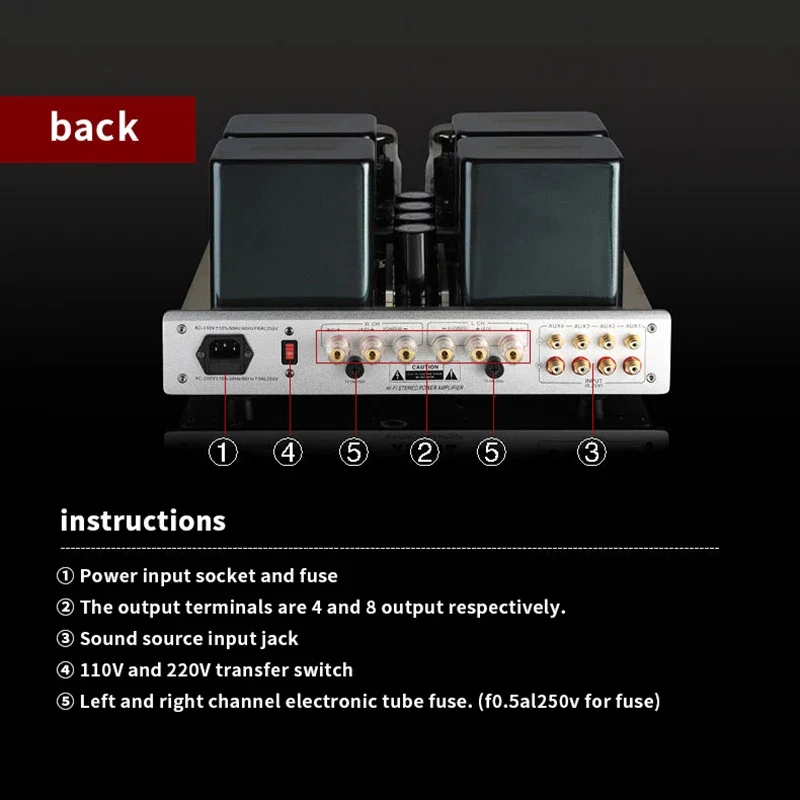

    Output Jacks: Two channels with two groups gold plated jacks
    Output Impedance: 4Ω and 8Ω
    Input Jacks: Gold plated isolated RCA jacks, 4 groups (CD, DVD, Tape, and Tuner) on rear, and 1 group on front as the input of post-stage mode
    Input Sensitivity:
    0.25V in integrated mode (CD, DVD, and Tuner)
    0.6V in pure post-stage mode (Front input connectors)
    Distortion of Harmonic Wave: ≤1.5%
    Frequency Response: 5Hz ~ 80KHz (-2dB
    Signal-to-Noise Ratio: 90dB (A weight)
    Supply Voltage: AC 115V, 60Hz
    Power Consumption: 250W
    Net Weight: 23kg
    Shipping Weight: 30kg
    Shipping Dimension: 60cm x 52cm x 36cm

YAQIN MC-100B 60WPC KT88 Class A Tube Integrated Amplifier

USD
$999.98
