    New Little Dot MK3 MKIII tube amplifier 6N11 tube preamp class a amplifier volume control dac amp headphone amp

    • Description

      •  Delivers a smooth, non-fatiguing sound with no hint of dynamic compression or imaging fuzz
      • Adds in user-tweaking options such as two gain switches to delivery maximum compatibility with all headphones, regardless of impedance or sensitivity
      • Wider range of driver tube-rolling, including the EF92, CV131, WE403A/B, 5654, M8100, CV4010, EF95, 6JI as well as all equivalents to these vacuum tubes
      • Power Tubes: 2x Soviet 6H6N






    Parameters:
    SEPP (Singled-ended Push Pull) OTL in Class-A
    Frequency response: 12 hz~100 Khz (-1dB)
    THD+N: 0.15% (80 mW @300 ohm)
    Power Output:
    350 mW @ 300/600 ohm
    300 mW @ 120 ohm
    100 mW @ 32 ohm
    Power Consumption: 30W (228V x 0.130A)
    Variable Gain: 3,4,5, or 10x
    Recommended Load Impedance:   32 ohm~600 ohm
    Input Impedance: 50K ohms
    Pre-Amplifier Output Impedance: 600 ohm
    Pre-Amplifier Gain: 3-10x (also controlled via gain switches)
    Pre-Amplifier Voltage: 10V RMS
    Pre-Amplification circuit includes both driver and power tubes
    Driver Tubes: 2x RTC5654
    Power Tubes: 2x Soviet 6H6N (included)
    High quality aluminum chassis
    Dimensions (Metric): 270mm deep by 175mm wide by 123mm high
    Dimensions (English): 10.6 inches deep by 6.9 inches wide by 4.8 inches
    Weight: 3 Kg or 6.6 lbs
    110-120V or 220-240V depending on your country
    1 Year Little Dot Warranty

    • 615NXhRNmrL._SL1000_61Utzc1ztdL._SL1000_51glUmkmsXL._SL1000_61uSddhby%2BL._SL1000_61G2qdrszBL._SL1000_61JdrrFVnDL._SL1000_61H1Ih5he1L._SL1000_Little-Dot-MKIII-MK3-RTC-5654-X2-6H6PI-X2-Headphone-Tube-Amplifier-Pre-Amplifier

    • 61qir5D4hHL._SL1000_

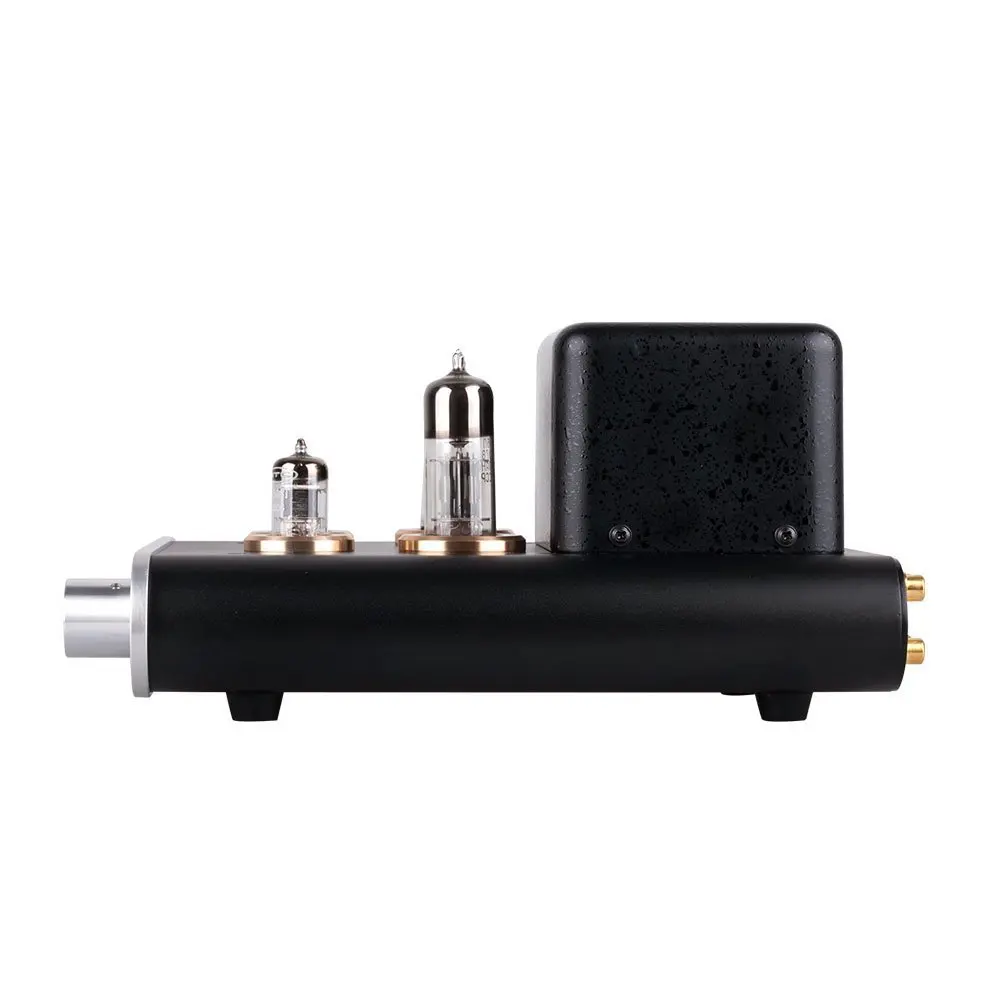

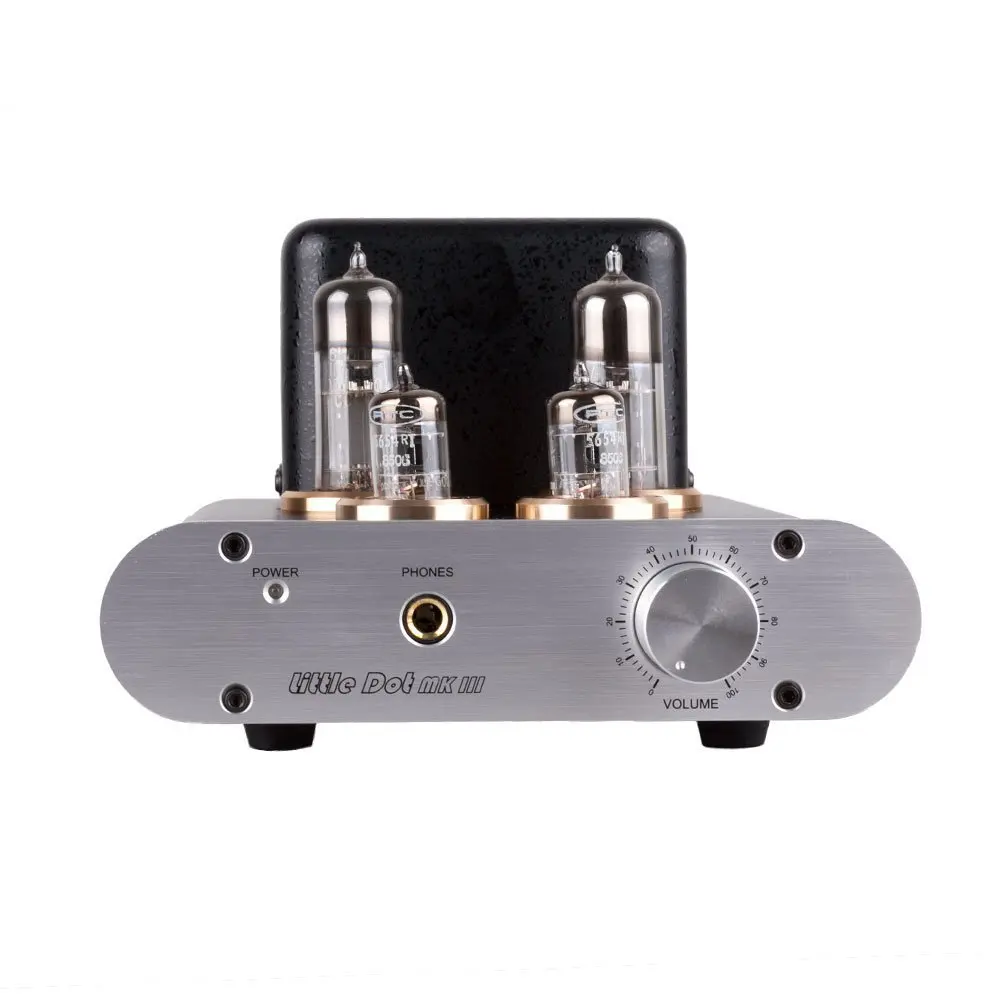

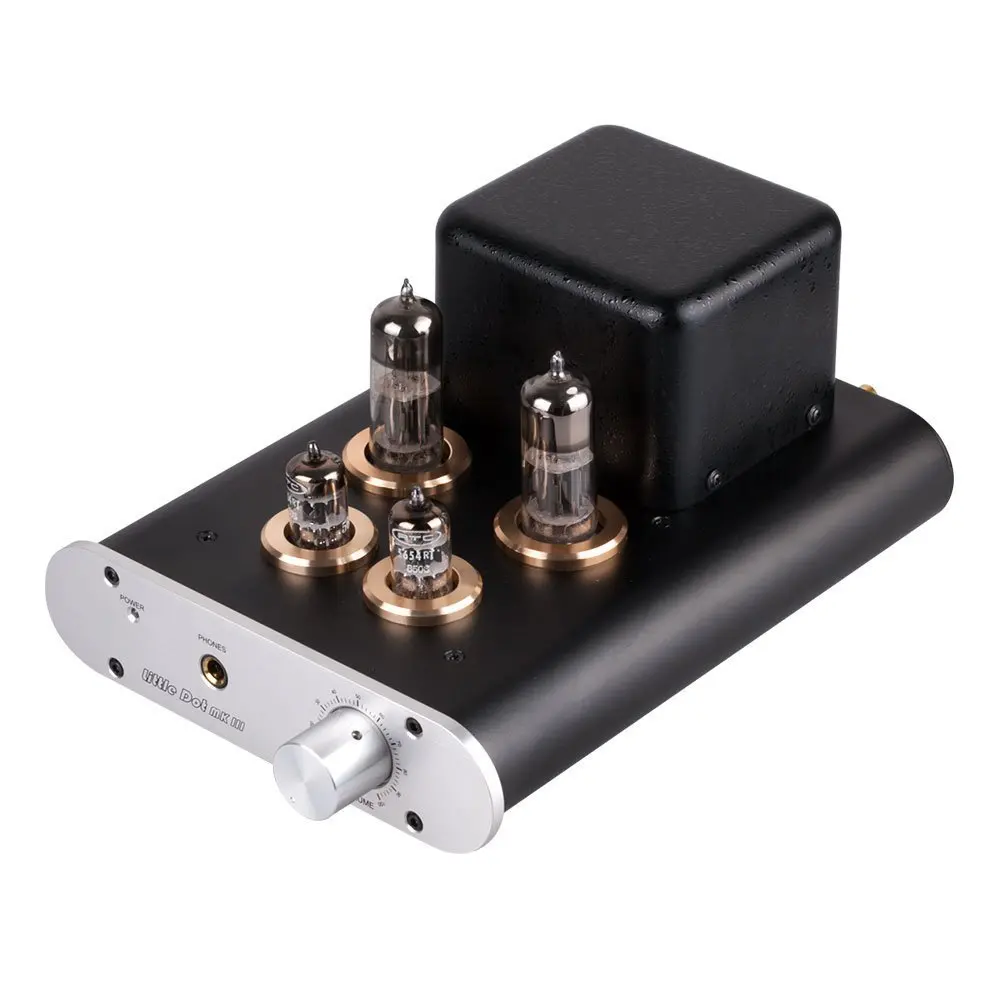

Little Dot MKIII Tube amplifier

USD
$299.98
