  • Description


    The burn-in time of PEGASUS DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours.

    Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.

    If possible, please use the XLR output. As a ture balanced DAC, the XLR output of PEGASUS will be more superior.




    Pegasus has it's own upscaling function in the internal, which supports up to 16 times.



    The burn-in time of PEGASUS DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours.


    Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.

    If possible, please use the XLR output. As a ture balanced DAC, the XLR output of PEGASUS will be more superior.


    MUSICIAN PEGASUS 32Bit/1536kHz 24Bit R2R + 6BIT DSD Balanced Resistance DAC Support DSD1024 SPDIF Receiving Scheme



    MUSICIAN PegasusDecoder



    MUSICIAN PegasusDAC



    Test review for MUSICIAN Pegasus DAC by famous reviewer

    Soundnews.net
    https://soundnews.net/sources/dacs/musician-audio-pegasus-r2r-dac-review/
    https://youtu.be/IX6A2MCXc3o
    Soundex.ru
    https://soundex.ru/en/obzory/sources-obzory/musician-pegasus/
    highfidelity.pl
    http://www.highfidelity.pl/@main-1023&lang=en
    Z Reviews
    https://www.youtube.com/watch?v=9Igv2IAzDbM&t=49s
    WolfX-700(Audio Science Review)
    https://www.audiosciencereview.com/forum/index.php?threads/measurements-of-musician-pegasus-r2r-dac.18786/#post-615029
    Pursuit Perfect System
    https://www.youtube.com/watch?v=Ka0I71lhDfw
    우리끼리오디오
    https://youtu.be/z8xTPwWc6rg
    Headfonia
    https://www.headfonia.com/musician-pegasus-review/



    Technical Highlights

    Proprietary R2R + DSD Architecture

    True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)

    Low Noise Power Supply

    FIFO Buffer

    Digital Signal Processing via FPGA

    USB/I2S input supports DSD1024, USB supports PCM1536kHz, and I2S supports PCM768kHz
    (audio source must be compatible with local interface)
    Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU

    Licensed Thesycon USB Driver For Windows Platform

    Driverless On Mac & Linux

    DSD

    DSD64-DoP On All Input

    DSD1024 On USB & I2S Input

    PCM

    24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input

    USB input supports 1536kHz, I2S input supports 768kHz

    Sampling Mode: Non-Oversampling NOS / Oversampling OS

    Digital Input

    Coaxial*1 via RCA

    Optical *1
    USB*1
    AES/EBU x 1

    I2S via HDMI LVDS *1


    Technical parameters
    Frequency Response: 10Hz~60KHz

    Resistance accuracy: 0.005%

    THD+N: 0.002%

    S/N Ratio: 123dB(A-weighted)

    Dynamic Range: >120dB
    AC Power Requirement: 110-240VAC, 50/60Hz (Worldwide Voltage)

    Power Consumption: ≤20W

    Dimension: 280 x 250x 50 mm

    Package Dim: 375 x 330 x 115 mm

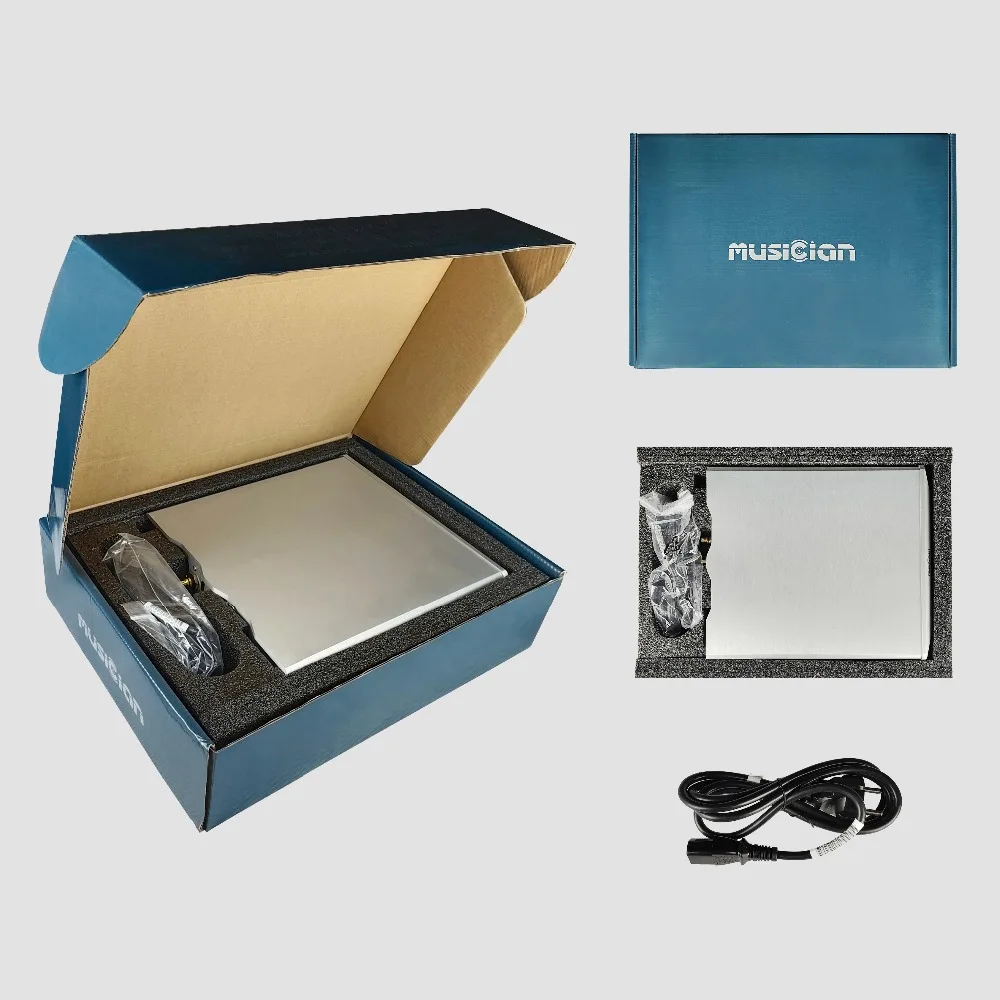

    Package Content: DAC only. No power cord & remote control.

    Weight:3.9 Kg

    Color: Silver / Black












    I2S Pin Configuration

    There is no industry standard of I2S connection.  Please confirm the IIS interface compatibility before purchasing.
    MUSICIAN Pegasus is trying to compatable with most of device by the following mode setting method if you are using standard HDMI cable:
    1. Select the sound source input to I2S;
    2. Press and hold the NOS button for 3 seconds until the I2S light flashes;
    3. Press the NOS button during the flashing process to cycle through the phase modes (there are total 8 modes, 1X, 2X, 4X indicator lights are binary mode Display);
    4. Stop the operation when you selected the satisfied sound, the machine automatically exits the mode setting function.

    Different brand/product has different I2S line order. We could not guarantee the I2S connection workability with your Interface/Turntable/Player. If it can not playing properly(such as hiss sound) by the above setting. This shall not be considered as a defective product, but just a matching failed.  The suggested solution is to use a customized HDMI cable.

    List of verfified and tested Interface/Turntable/Player:
    Jay's Audio CDT MK2
    Matrix SPDIF 2 USB
    SOUNDAWARE D280
    Gustard U16
    Singxer SDA-1







MUSICIAN PEGASUS 32Bit/1536kHz 24Bit R2R DAC 6BIT DSD Balanced Resistance DAC Support DSD1024 SPDIF Receiving Scheme R2R Decoder

Pegasus has been upgraded to Pegasus II, buy it here : https://aoshida-audio.com/products/musician-pegasusii
Sold:
428
USD
$1099.99
