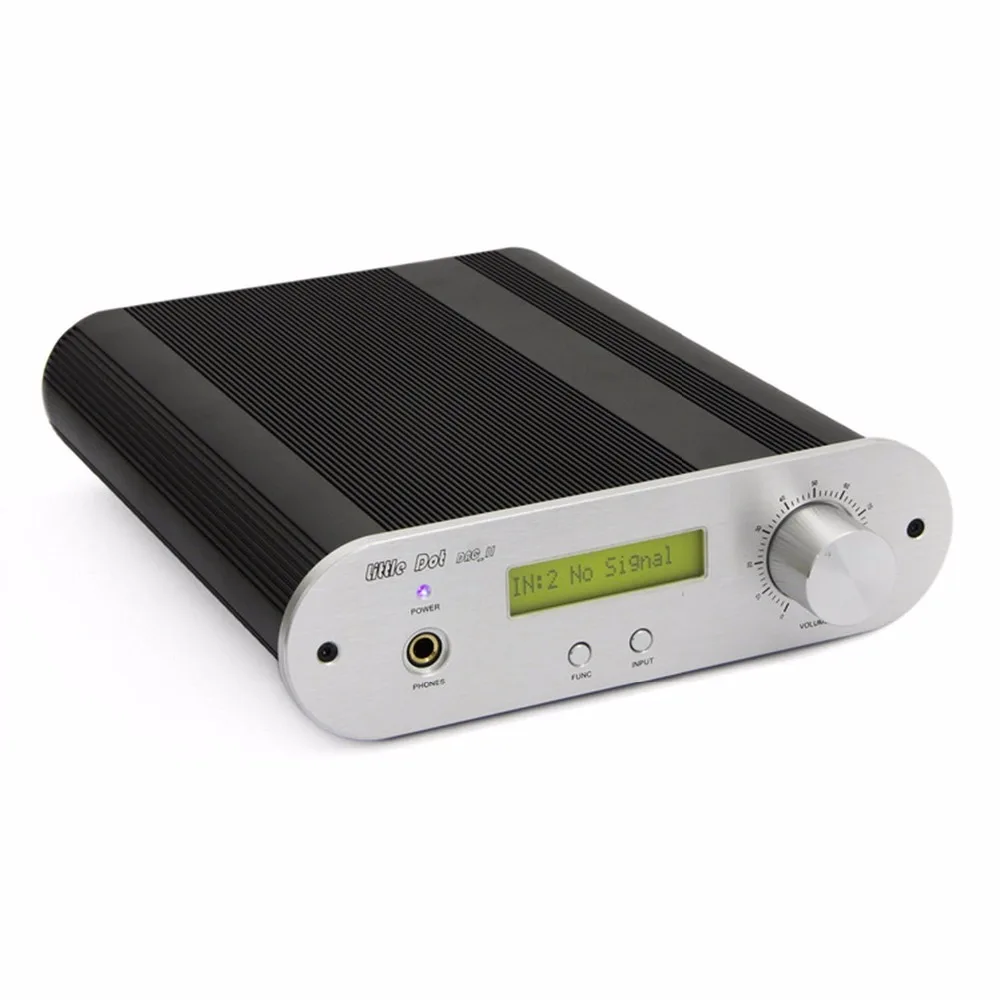

DescriptionLittle Dot DAC_II DAC-2 DACII DAC+Headphone Amplifier Decoder WM8740+WM8805 Multifunction Power Amp
Instruction:
- Little Dot DAC_II combines our Little Dot DAC_I's D/A circuit with a built-in (LME49710HA pre-stage and discrete BD139/BD140 transistor output stage) headphone amplifier module
- Little Dot DAC_II delivers a smooth and highly accurate sonic presentation with no detail left obscured
Product Description:

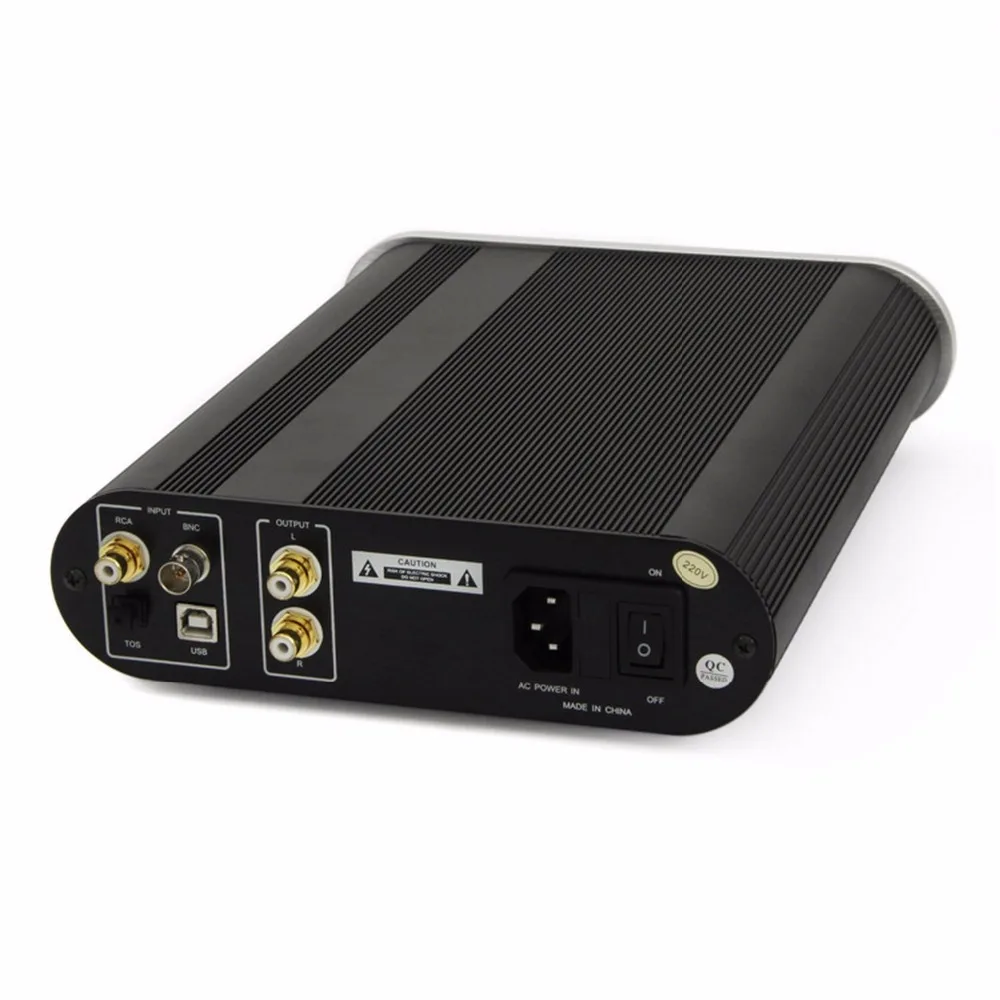

S/PDIF Digital Inputs:
BNC
RCA (Coaxial)
Toslink (Optical)
USB (Standard USB audio device)
Output Frequencies:
16/24-bit
44.1 KHz - 96 KHz (Display will show 44.1 KHz, 96 KHz, or 192 KHz)
USB input: 16-bit / 48 KHz
Output Voltage:
RCA non-balanced output: 2V (RMS) per channel
Headphone output: 300 mW RMS (32 ohms)
Signal-To-Noise: > 110 dB
Dynamic Range: 117 dB
Total Harmonic Distortion: -104 dB
Power Consumption: 10 VA
Fuse Rating: 1A
Measurements:
Metric: 365mm (length) by 217mm (width) by 61mm (height)
English: 14.37 inches (length) by 8.54 inches (width) by 2.4 inches (height)
Weight:
Gross: 2.8 KG
Net: 2.0 KG
-
