    Hidizs DH80 Portable USB DAC/AMP with MQA Support, Aluminum Alloy CNC Shell, 3 Level Gain Selection for Mac OS/Win/Android/iOS
    HiFi Audio DAC】RecentlyHidizs has introduced two portable USB DAC/AMP's, the DH80 and DH80S, both of which feature an advanced ES9281C Pro DAC chip from Sabre Technologies with more dynamic range, low power consumption, ultra-low distortion, and also support MQA. It provides high-resolution audio decoding with PCM support up to 32-Bit/384kHz and DSD up to DSD128 natively.
    MQA DecodingSupported】Bothmodelssupport the latest MQA decoding with full 8x unfolding. Experience outstanding acoustic performance with master quality audio files and enjoy the true signature of your music as the artist intended it to be. Source device should be loaded with MQA supported software such as UAPP, Tidal, and more.
    4.4mm Balanced/3.5mm SE Output, 3 Level Gain Switch】The newly launched product features a fully balanced 4.4mm output port along with a single-ended 3.5mm headphone output. Independent volume controls with a 3-level gain switch are added too. The volume control provides 30levels, allowing for precise control.Itprovidesgoodcompatibility with HiFi headphones with an output power of up to 210mW+210mW @ 32Ω through the balanced 4.4mm output port
    One-Piece Aluminium Alloy CNC Shell&Magnetic Absorption Design】Hidizs has equipped the DH80/DH80S with a high-quality magnet that allows secure fix with a seamless connection with the connected devices(smartphones/Hi-res players) . The product itself is built with an Aluminium alloy CNC case for a supreme feel
    Multiple Platform Supported】The Hidizs DH80/DH80S are compatible with different systems such as Android, iOS devices, MACorWindows systems.No more worry about compatibility and simply get this portable gadget for your HiFi journey. Please note that the lightning OTG cable to connect with iOS devices is not included in the package and has to be purchased separately.
    Key Features of Hidiz DH80/DH80S
    -ESS9281C PRO DAC Chip+Dual Op Amps RT6863C
    -MQA supported, 4.4mm balanced /3.5mm SE output
    -Built-in independent battery, one-piece Aluminium alloy CNC body
    -Magnetic Absorption Design for a seamless and secure fit with the device

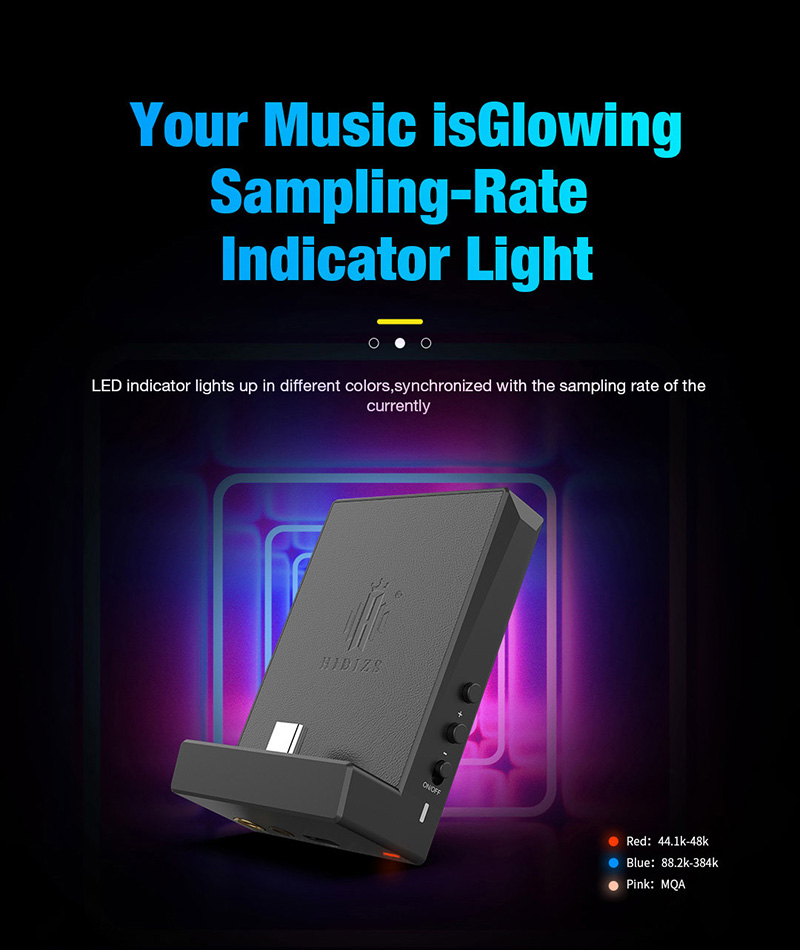

    -3 level gain selection, sampling rate indicator light

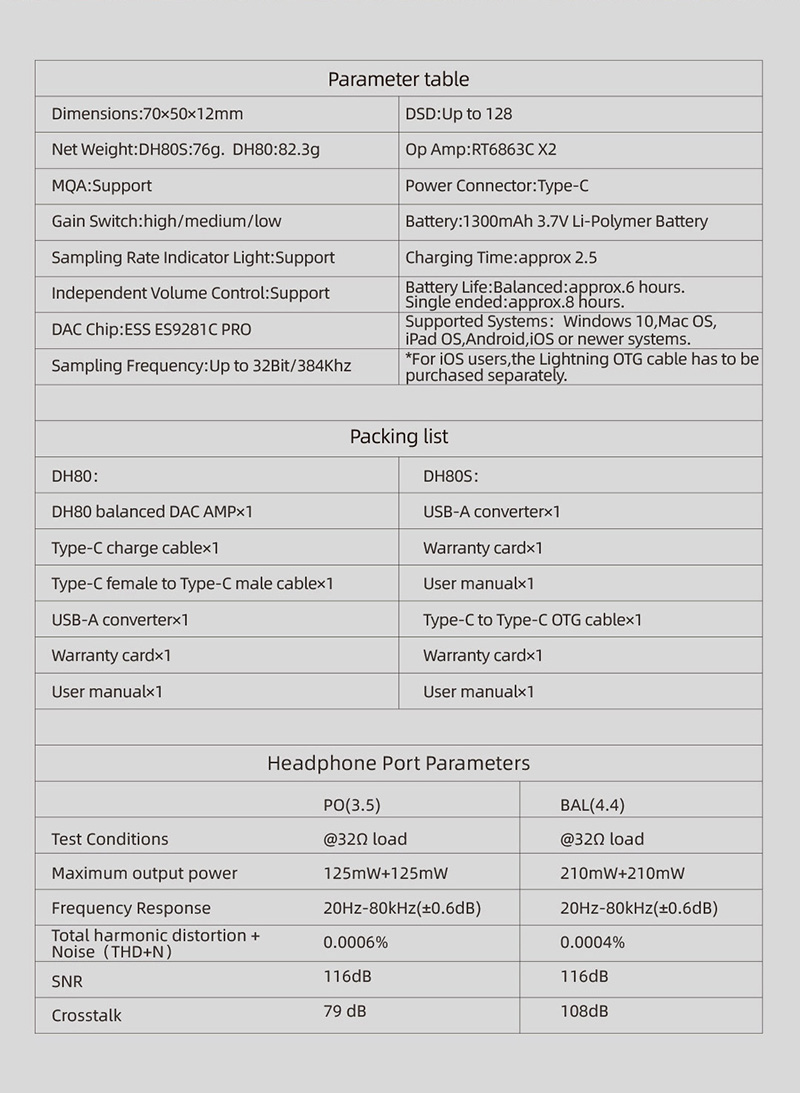

    OPAMP: RT6863Cx2
    Power Connector: Type-C
    Battery Capacity: 1300mAh
    Charging Time: Approx 2.5 hours
    Battery Life: up to 6 hours(Balanced), Up to 8 hours(single-ended)
    Maximum Output Power(3.5mm): 125mW+125mW(32Ω)
    Maximum Output Power(4.4mm): 210mW+210mW(32Ω)
    Frequency Response Range: 20Hz-80kHz(±0.6dB)
    THD+N(3.5mm): 0.0006%.
    THD+N(4.4mm): 0.0004%
    Crosstalk(3.5mm): 79dB
    Crosstalk(4.4mm): 108dB
    SNR: 116dB
