  • Description

    GUSTARD C16 10M Clock High Precision Low Noise Audio Clock Constant temperature crystal OCXO

    Parameter:

    Output frequency: 10MHz
    Frequency accuracy: <±300ppb
    Frequency stability: <±50ppb
    Output amplitude: ≥7dBm @ 50Rz
    Output waveform: square wave
    Output impedance: 50Ω
    Near-end phase noise @1Hz(TYP): -100dBc
    Short Stable (Allen Variance) (TYP): 2E-12

    Other parameters:

    • Output amplitude: 7dBm @50 Ohm
    • AC power supply: AC 115V/230V 50/60Hz
    • Machine power consumption: <15W
    • Body size: width 220mm* height 50mm* depth 170mm (excluding protruding parts)
    • Packing size: width 285mm* height 85mm* depth 270mm
    • Weight: 2.5Kg (including packaging)

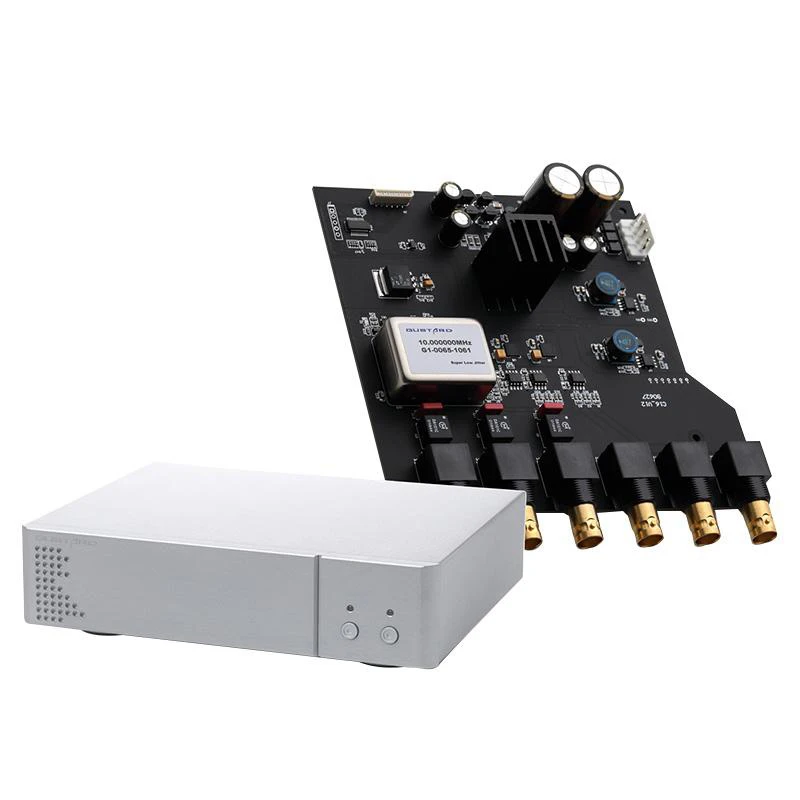

    • The C16 is a 10MHz high performance low phase noise clock generator;

    • The C16's built-in crystal oscillator is a new SC-cut OCXO that has been customized from the top manufacturers in the crystal industry to ensure stable quality.;
    • A true low jitter design with low near-end phase noise.
    Its measured performance is more than two orders of magnitude better than the traditional SPXO femtosecond crystal oscillator.;

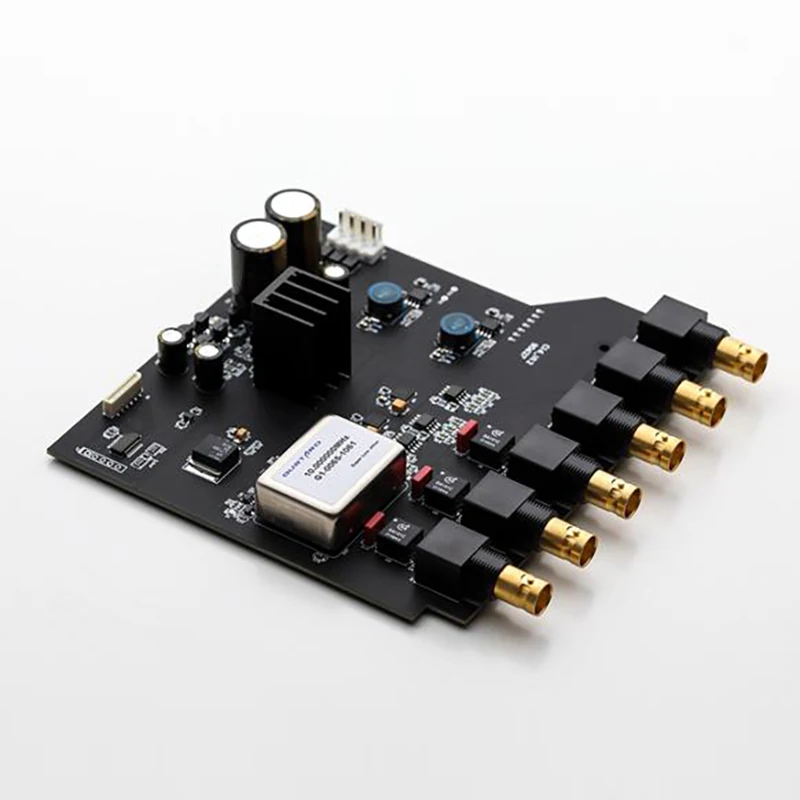

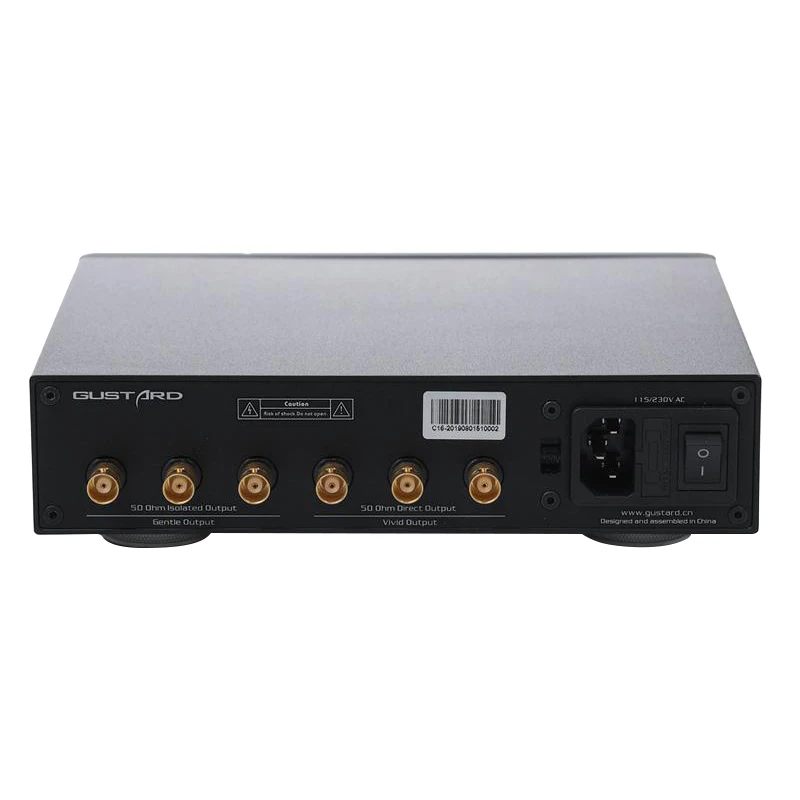

    • With six BNC interface outputs (3+3), it is divided into two output modes: direct output and isolated output.
    • The output waveform of the C16 is three or six square wave outputs, which is better for back-end device compatibility than sine wave output.;
    • During the development process, we optimized the subjective and objective audio performance of the C16 specifically for the Gustard U16 and future audio digital source devices.;
    • The C16 is not the most extreme performance design without considering cost. Instead, it uses a cost-effective OCXO to achieve a good balance between performance and price. The C16 has better subjective and objective audio performance than the traditional SPXO femtosecond crystal oscillator, and the price is also relatively friendly.

    Gustard-C16-10MHz-Clock-OCXO-High-Precision-Low-Noise-Audio-Clock (1)Gustard-C16-10MHz-Clock-OCXO-High-Precision-Low-Noise-Audio-Clock (2)Gustard-C16-10MHz-Clock-OCXO-High-Precision-Low-Noise-Audio-Clock (3)Gustard-C16-10MHz-Clock-OCXO-High-Precision-Low-Noise-Audio-ClockH0ea4b76c8db24adebf9fa5f1c3a9d28aLH98ff0f6365434795a64814d554d3fac1eH7886c1f2b59d46739f73b759b2b11662vH8567ad8a672b4962b2ce42be30255388SHb7d18810e4e54bc69a35eecc55d96541cHdd76482b67ed44399cc12281e49d605e2

GUSTARD C16 10M Clock High Precision Low Noise Audio Clock Constant temperature crystal OCXO

USD
$659.00
