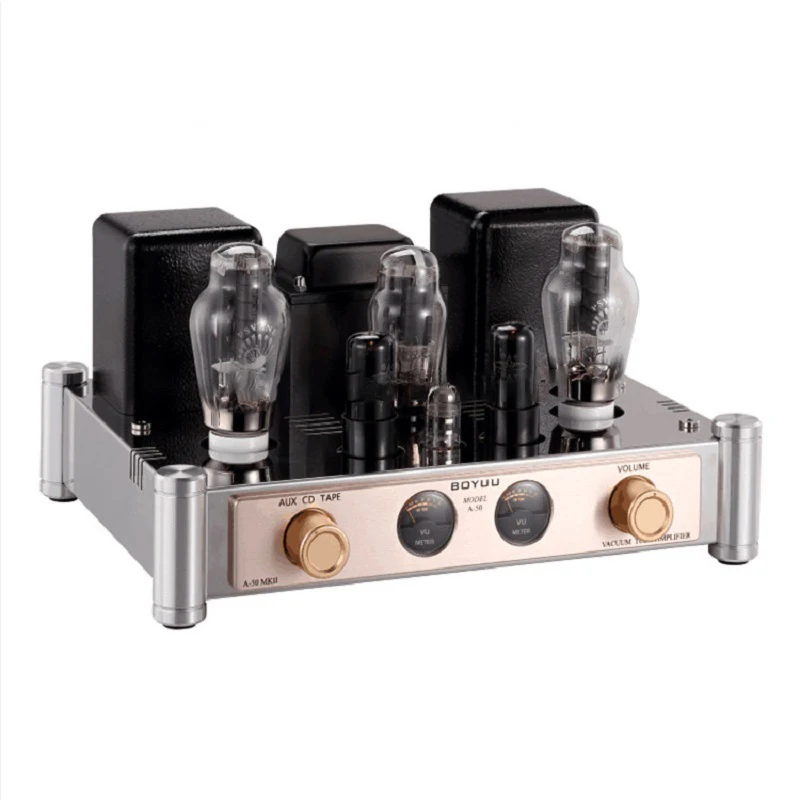

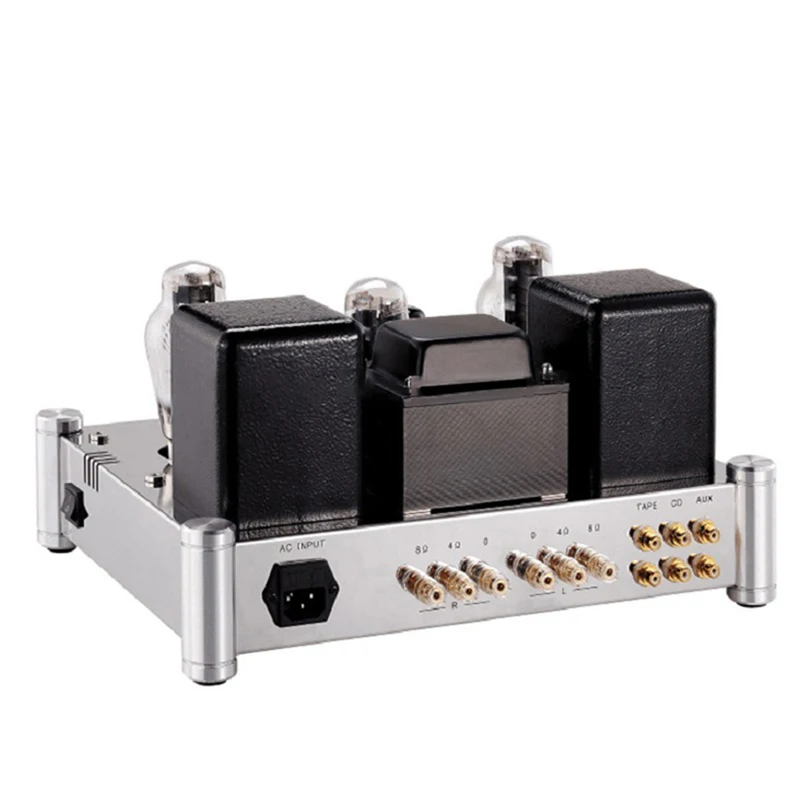

    Boyuu A50 II 300B vacuum tube amp Class A HiFi Integrated Vacuum Tube Amplifier 12AT7 6v6 Lamp Amplifier HIFI Single-Ended Amp



    Basic technical parameters:

    • Input Sensitivity: 750MV

    • Output power: 2 × 8.2Watt

    • SNR: 89dB

    • Input impedance: 100K ohm, RCA x 3 Gold Plated

    • Output Impedance: 4 ohm, 8 oh

    • Frequency response: 15Hz-42KHz

    • Dimension: 378W x 318D x 178H mm

    • Net weight: 17 KG

    • Package weight: 20-21kg

    • Input voltage: 110-120v or  220- 240v ,50Hz/60Hz



    Features:

    • Preamp tube: 12AT7(ecc81)×1,  6p6p(6v6)×2

    • Power Tube: PSVANE 300B ×2.

    • Rectifier Tube: 5Z3P×1

    • Improve the middle frequency's density  and performance

    • Improve the bass power and deep

    • Power Transformer: Imported 0.35, stacked thick 60MM (105-60).

    • Output Transformer cores:  Imported 0.35 (86-50).

    • Chassis: Imported mirror stainless steel chassis.

    • Corners aluminum column: high-grade aluminum CNC machining, diamond knife speed car system.

    • High pressure UseLarge inductance Π-type power filter

    • Champaign gold front panel



Boyuu A50 II 300B Tube Amplifier

USD
$799.00
